Product Details

Model No.: RG-26G/36G/46G

Type: Impact Crusher

Object: Plastic

Drive: Electric

Crushing Degree: Intermediate Crusher

Crushing Style: Grinding and Impact

Principle: Fixed Culling

Cutter Material: High-Speed Steel

Finished Surface: Outer Surface Process

Compressive Strength (For Crushing): <100MPA

Tongs' Features: Adjustable Tongs

Transportation: OceanPackaging: wooden case

Brand: RHONG

Place of Origin: china

Certificate: CE

Model	RG-2640G	RG-2650G	RG-3660G	RG-3680G	RG-4680G	RG-46100G
Power	7.5kw	11kw	15kw	22kw	22kw	30kw
Rotor speed	560rpm	560rpm	560rpm	560rpm	560rpm	560rpm
Rotating blades	12pcs	15pcs	6pcs	6pcs	6pcs	6pcs
Fixed blades	2pcs	4pcs	4pcs	4pcs	4pcs	6pcs
Screen Diameter	10mm	10mm	12mm	12mm	12mm	12mm
Cutting Chamber size	320*400mm	320*500mm	460*600mm	460*800mm	560*800mm	560*1000mm
Output	300-550kg/h	400-650kg/h	400-700kg/h	600-900kg/h	700-1200kg/h	800-1600kg/h
Noise	80-95dB(A)	80-95dB(A)	80-95dB(A)	80-95dB(A)	80-95dB(A)	80-95dB(A)
Motor Lifting Device For Hopper	●	●	●	●	●	●
Material Box	●	●	●	●	●	●
Blower conveying system	○	○	○	○	○	○
Slow Speed Granultor	○	○	○	○	○	○
Fixed magnet at feeding mouth	○	○	○	○	○	○
Dust separator system	○	○	○	○	○	○
Weight	550kg	650kg	1200kg	1350kg	1690kg	1850kg
External size	130010801435mm	130011801435mm	166013001855mm	166015001855mm	184515602170mm	184517602170mm

Note:

1)"●"is standard allocation, "○"is selection purchase.

2)"-A"means Claw Blades type;"-B"means Flat Blades type.

3)The max .shreding quantity depend on the mesh holediameter and shredding material quality.

4)The varied boise depend on varied shredding material.

5)The machine voltage specification is 3φ 380V 50Hz. The voltage can be changed as you require.

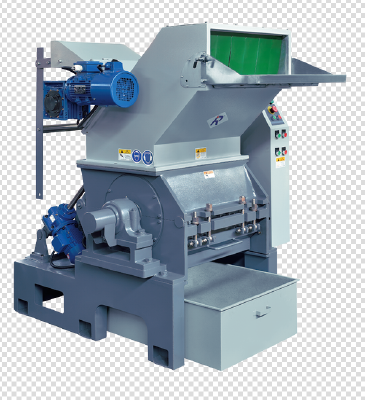

Centralized Granulator
