Heavy duty granulator

Heavy duty granulator

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: Ningbo ports
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2007-04-11
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  2290*2340*3240mm
  • Place of Origin:  Ningbo
  • Brand Name:  rihong
  • Model Number:  RG-66S
  • Weight: 7800.000 kg

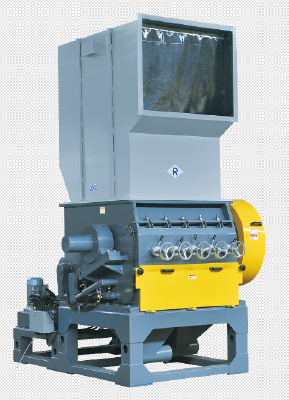

Heavy Duty Granulator
RG-66S series

Heavy duty granulator of RG66S series, are mainly used to cut pipes, containers, sheet, cables, wires, TV outer cover, refrigerator inner material, car oil tank and car bumpers etc.

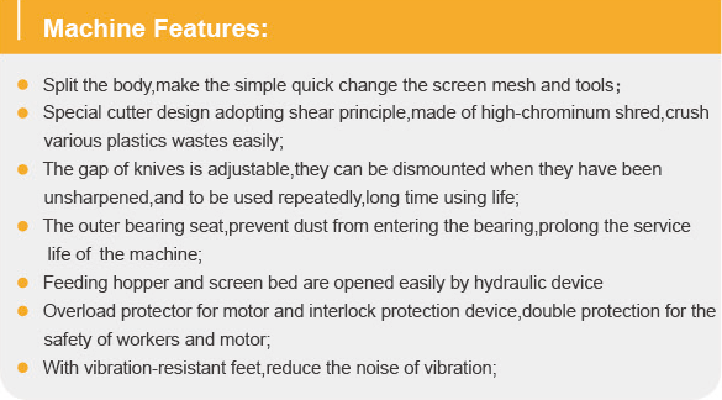

The characters of the machine
1. Outside bearing seat design, in order to avoid the dust entering into the bearing, long time using life.
2. Separation design for machine body, convenient for replacing the screen and blades.
3. Overloading protector for motor and interlock device, double protection for the safety of personnel and motor.
4. Special knife blade structure adopting shear principle, made of high contented chromium steel, shred the various plastic in an easy way.
5. Knives gap adjustment is available, and the knives can be resharpened numerous times, long time using life.
6. Modern design, nice appearance.
7. Equipped with shock-proof feet, reduce the noise of vibration.
8. The Suction Conveying and Cyclone Dust Separator System can save the man power, reduce to pollute raw material and raise the working efficiency.



  • Size:  2290*2340*3240mm
  • Place of Origin:  Ningbo
  • Brand Name:  rihong
  • Model Number:  RG-66S
  • Weight: 7800.000 kg
ModelRG-66100SRG-66120SRG-66140S
Power75kw110kw132kw
Rotor speed450rpm450rpm450rpm
Rotating blades6pcs6pcs6pcs
Fixed blades4pcs4pcs4pcs
Screen Diameter12mm12mm12mm
Cutting Chamber size870*1000mm870*1200mm870*1400mm
Output1500-2500kg/h1800-2800kg/h2000-3000kg/h
Noise100-120dB(A)100-120dB(A)100-120dB(A)
Blower Conveying System●4KW*24KW*24KW*2
Hydraulic controller for feeding-hopper
Hydraulic controller for Screen bed
Material Box
Weight4960kg6200kg7800kg
External size2290*1980*3240mm2290*2140*3240mm2290*2340*3240mm

Note:

1)""is standard allocation, "○"is selection purchase.

2)"-A"means Claw Blades type;"-B"means Flat Blades type.

3)The max .shreding quantity depend on the mesh holediameter and shredding material quality.

4)The varied boise depend on varied shredding material.

5)The machine voltage specification is 3φ 380V 50Hz. The voltage can be changed as you require.
