- Size: L1830*W1200*H1400
- Place of Origin: china
- Brand Name: rihong
- Model Number: RG36 Series
- Weight: 1170.000 kg
The plastic-pipe granulators of RG-36P series,are mainly used to directly granulate the PVC and PE tubings,PVC sectional and profiled bar.The machine is applicable for crushing long pipes and profiles.The equiped suction conveying and cyclone dust separator system bring recycling efficiency into full play.The machine is characterized with compact structure,atractive appearance,convenient operation,optimized rotation knife to achieve lowest energy consumption and higher cutting efficiency.

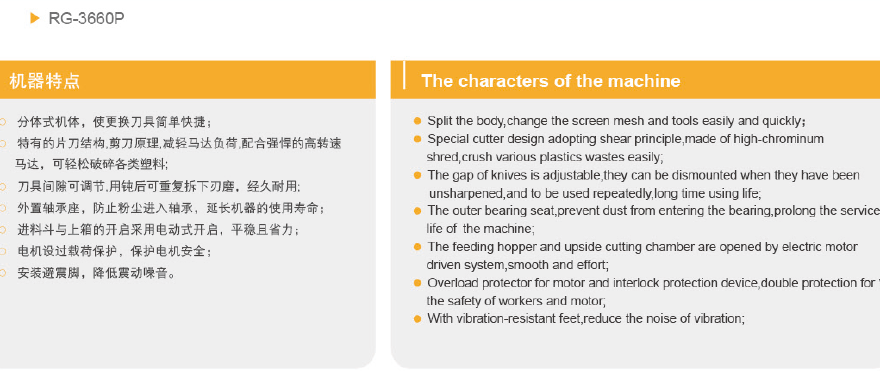

The characters of the machine
>Outside bearing seat design,in order to avoid the dust entering into the bearing ,long time using life.
>Separation design for machine body,convenient for replacing the screen blades.
>Separation design for machine body,convenient for replacing the screen blades.
>Overloading protector for motor and interlock device,double protection for the safety of personnel and motor.
>Special knife blade structure adopting shear principle,nade of high contented chromium steel,shred the various in an easy way.
>Knives gap adjustment is available,and the knives can be resharpened numerous time,long time using life.
>Optimized auto-feeding device,make the feeding to be more smooth.
>Modern design,nice appearance.
>Equipped with shock-proof feet,reduce the noise of vibration.
The plastic-pipe granulators of RG-36P Series,and are mainly used to directly granulate the PVC and PE tubings,PVC sectional and profiled bar.The machine is applicable for crushing long pipes and profiles.The equiped Suntion Conveying and Cyclone Dust Separator System bring recyling efficinecy into full play.The machine is characterized with compact structure,atractive appearance,convenient operation,optimized rotation knife to achieve lowest energy consumption and higher cutting efficiency
- Size: L1830*W1200*H1400
- Place of Origin: china
- Brand Name: rihong
- Model Number: RG36 Series
- Weight: 1170.000 kg
| Model | RG-3660P |
| Power | 15kw |
| Rotor speed | 560rpm |
| Rotating blades | 6pcs |
| Fixed blades | 4pcs |
| Screen diameter | 12mm |
| Feeding Mouth | 260*540mm |
| Cutting chamber | 320*600mm |
| Output | 300-600kg/h |
| Noise | 80-95dB(A) |
| Material Box | ● |
| Hydraulic controller for feeding-hopper | ● |
| Dust Separator System | ○ |
| Blower Conveying Device | ○ |
| Weiht | 1170kg |
| External size | 1830*1200*1400mm |
Note:
1)"●"is standard allocation, "○"is selection purchase.
2)The max.Granulating quantity depend on the mesh hole diameter and material quality to be granulated.
3)The machine voltage specification is 3,380V,50Hz The voltage can be changed as you require.
