Product Details
- Size: 1140*470*1470mm
- Place of Origin: Ningbo
- Brand Name: rihong

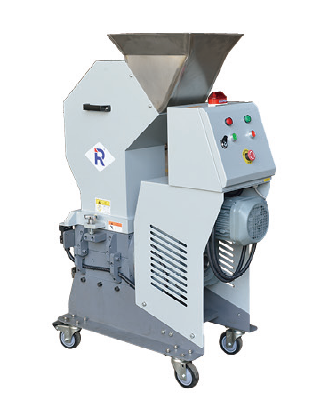

- Model Number: RG-24
- Weight: 390.000 kg
- Size: 1140*470*1470mm
- Place of Origin: Ningbo
- Brand Name: rihong
- Model Number: RG-24
- Weight: 390.000 kg
| Model | RG-2417 | RG-2427 | RG-2436 | RG-2446 |
| Power | 0.75kw | 1.5kw | 2.2kw | 2.2kw |
| Rotor speed | 37rpm | 37rpm | 34rpm | 34rpm |
Rotating blades (claw blades) | 1pcs | 2pcs | 3pcs | 4pcs |
Rotating blades (gear blades) | 2pcs | 3pcs | 4pcs | 5pcs |
| Fixed blades | 4pcs | 6pcs | 8pcs | 10pcs |
Cutting Chamber size | 240*170mm | 240*270mm | 240*360mm | 240*420mm |
| Output | 8-10kg/h | 10-15kg/h | 15-25kg/h | 25-35kg/h |
| Noise | 60-75dB(A) | 60-75dB(A) | 60-75dB(A) | 60-75dB(A) |
Blower Conveying System | ● | ● | ● | ● |
Instantaneous recycling system | ● | ● | ● | ● |
| Proportional-valve Conveying Device | ○ | ○ | ○ | ○ |
| Material Box | ○ | ○ | ○ | ○ |
| Weight | 265kg | 310kg | 360kg | 390kg |
| External size | 840*470*1470mm | 940*470*1470mm | 1040*470*1470mm | 1140*470*1470mm |
Note:
1)"●"is standard allocation, "○"is selection purchase.
2)The max .shreding quantity depend on the mesh holediameter and shredding material quality.
3)The varied boise depend on varied shredding material.
4)The machine voltage specification is 3φ 380V 50Hz. The voltage can be changed as you require.
