- Size: 1725*1820*2020
- Place of Origin: Ningbo
- Brand Name: rihong
- Model Number: RG-26GQ/36GQ
- Weight: 2000.000 kg

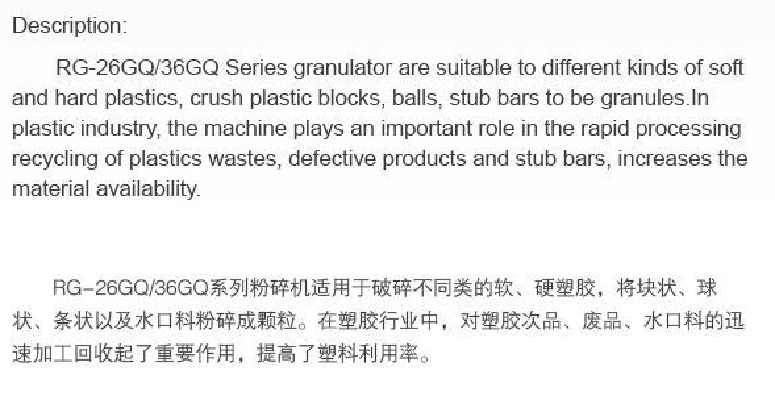

RGQ-26GQ/36GQ series sound proof granulators are suitable for crushing different kinds of soft and hard plastic,will block,ball,crushed into strips and sprue material particles;
In the plastic industry,the plastics,waste,defective items material following has played an important role in the rapid processing recycling,improve the utilization rate of plastic materials.

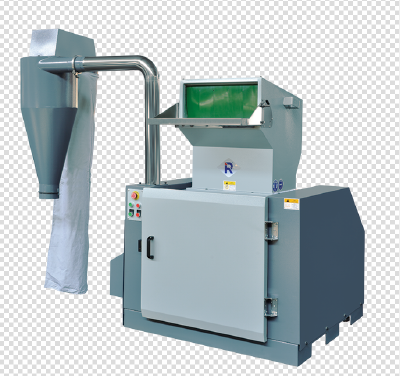

Compact Sound-proof Granulator
1. Compact design, fully enclosed body, very low noise.
2. Tool carrier adopts shear principle to decrease motor's load. High-Cr steel cutter together with strong high-speed motor as so to break various plastic object easily.
3. Adjustable material inlet in order to feed by conveying belt easily.
4. Shock-proof pad installed in order to absorb vibration while breaking.
5. Overload protection device for motor and chain protection device for power source to double protect the safety of motor and workers.
6. Optional purchase with cyclone dust-collector to separate dust efficiently.
7. Equipped with blower conveying system with powerful conveying capacity.
8. Suitable for breaking various plastic objects including film and bottles.
- Size: 1725*1820*2020
- Place of Origin: Ningbo
- Brand Name: rihong
- Model Number: RG-26GQ/36GQ
- Weight: 2000.000 kg
| Model | RG-2640GQ | RG-2640GQ | RG-2640GQ | RG-2640GQ |
| Power | 7.5kw | 11kw | 15kw | 22kw |
| Rotor speed | 560rpm | 560rpm | 560rpm | 560rpm |
| Rotating blades | 12pcs | 15pcs | 6pcs | 6pcs |
| Fixed blades | 2pcs | 4pcs | 4pcs | 4pcs |
| Screen Diameter | 10mm | 10mm | 12mm | 12mm |
Cutting Chamber size | 320*400mm | 320*500mm | 320*600mm | 320*800mm |
| Output | 300-550kg/h | 400-650kg/h | 400-700kg/h | 600-900kg/h |
| Noise | 80-95dB(A) | 80-95dB(A) | 80-95dB(A) | 80-95dB(A) |
Blower Conveying System | ● | ● | ● | ● |
| Motor lifting device for hopper | ● | ● | ● | ● |
| Fixed Magnet at feeding mouth | ○ | ○ | ○ | ○ |
| Dust separator | ○ | ○ | ○ | ○ |
| Weight | 600kg | 710kg | 1700kg | 2000kg |
| External size | 1290*1375*1630mm | 1290*1475*1630mm | 1725*1620*2020mm | 1725*1820*2020mm |
Note:
1)"●"is standard allocation, "○"is selection purchase.
2)"-A"means Claw Blades type;"-B"means Flat Blades type.
3)The max .shreding quantity depend on the mesh holediameter and shredding material quality.
4)The varied boise depend on varied shredding material.
5)The machine voltage specification is 3φ 380V 50Hz. The voltage can be changed as you require.
